Pneumatic Valves

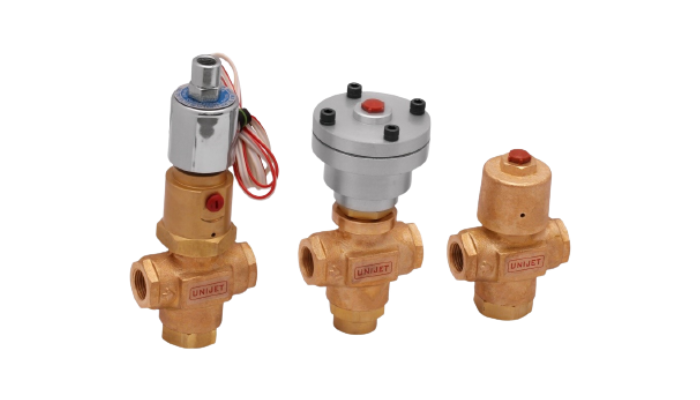

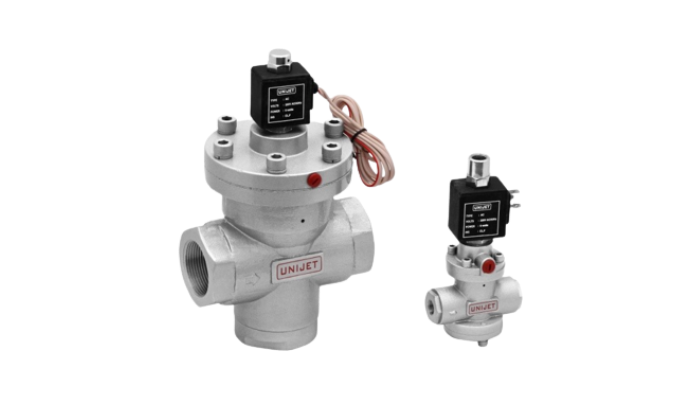

Solenoid Operated Poppet Valve
Unijet poppet valves are solenoid operated with high flow, spring return, direction control valve. The rugged, simple design eliminates metal to metal contact ensuring long life and trouble free operation. High pressure 1:1 and 10:1 pilot configuration is available in 1/2" BSP for 35 bar.
ENQUIRE NOWModel & Specifications
| TYPE | 1/2" (HP 1:1) | 1/2" (HP 1:10) | 1/2" | 1" | |
|---|---|---|---|---|---|
| MODEL NUMBER | NC | HSPV 10 G10-1:1 | HSPV 10 G10-1:10 | SPV 10 G10 | SPV 10 G22 |
| NO | NIL | SPV 15 G10 | NIL | ||
| 3 WAY | NIL | SPV 20 G10 | NIL | ||
| ORIFICE (NW) | 13.5 | 9 | 14 | 25 | |
| PRESSURE RATING | 0-35bar | 0-16bar | |||
| FLOW RATE (Cv) | 3.18 | 10.58 | |||
| TEMPERATURE RANGE | -20ºC to 80ºC | ||||
| MOC | GUN METAL | ALUMINIUM | |||
| SEALS | NITRILE / VITON (ON REQUEST) | ||||
| COIL TYPE | ENCAPSULATED COIL | ||||
VOLT (V)± 10% |
220V AC / 110V AC / 24V DC / 12V DC | ||||
| CLASS OF INSULATION | CLASS F | ||||
| DUTY CYCLE | CONTINUOUS CYCLE | ||||
| TYPE OF COIL PROTECTION | IP65 | ||||

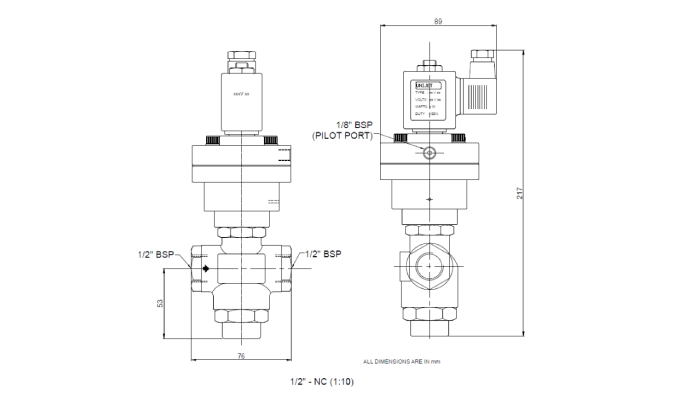

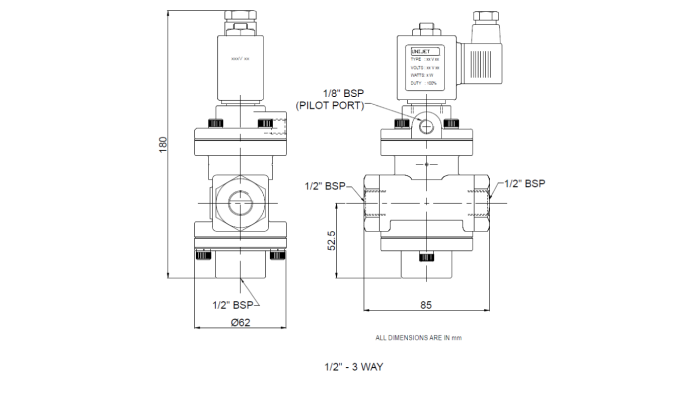

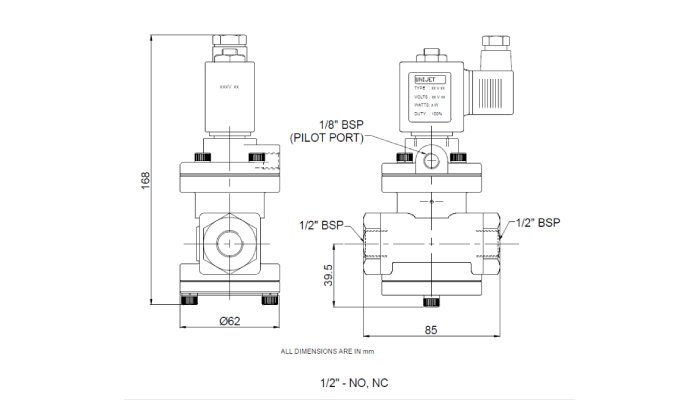

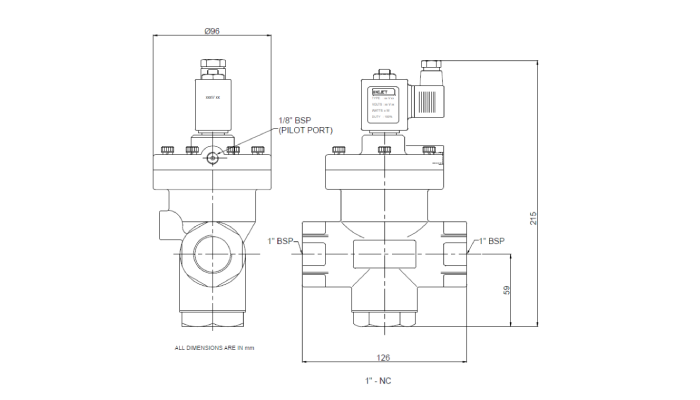

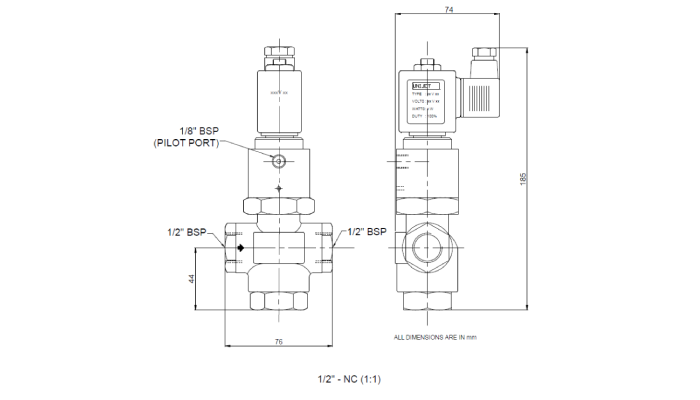

Basic Dimensions
