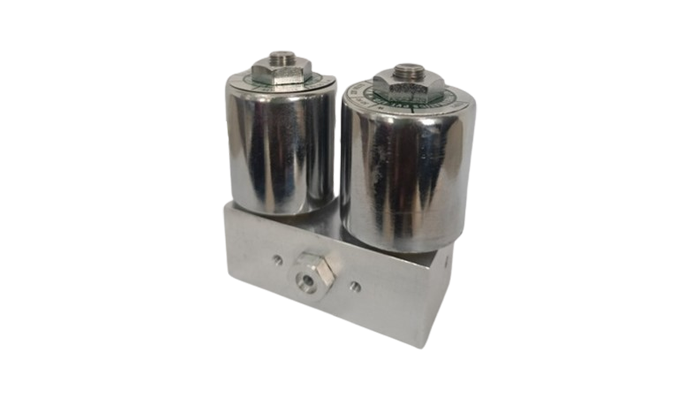

Dual Solenoid Valve
The Unijet manifold valve is made of strong aluminium and is specifically designed to fit Nitrogen inflators. Unijet 3 Port Valves have a pressure range of 12 bar. The valve's unique design features allow for rapid nitrogen replenishing and filling. It also contains a sensor mounting port as an added function..
ENQUIRE NOWModel & Specifications
| MODEL NUMBER | CDS6R | CDS6A | |
|---|---|---|---|
| PORT SIZE (IN / OUT / EXH) | 1/4" BSP | ||
| PRESSURE RATING | 0-12bar | ||
| ORIFICE (NW) | 1.8 mm | INLET | |
| 2.5 mm | EXHAUST | ||
| FLOW RATE AT 6 bar (lpm) | 1.8 mm | 120 | |
| 2.5 mm | 180 | ||
| TEMPERATURE RANGE | -20ºC to 80ºC | ||
| MOC | ALUMINUM | ||
| SEALS | NITRILE | ||
VOLT (V) ±10 |
12V DC | 220V AC | |
| COIL TYPE | CUP COL (C) / ENCAPSULATED COIL (M) | ||
| POWER CONSUMPTION(watts) | 12 (C) / 9 (M) | 8 (C) / 6 (M) | |
| CLASS OF INSULATION | CLASS F | ||
| DUTY | CONTINUOUS | ||
| TYPE OF COIL PROTECTION | IP65 | ||
Basic Dimensions
